Upgrades
Mains Cable: Power-Line
Power Supply: 555 PS DR/ XPS/ XP5 XS
Other: Super Lumina / Hi-Line
User Control
App Control: Naim App for iOS and Android
Front Panel: 5″ colour LCD display and four buttons
Handheld: Zigbee® RF4CE
Ripping and Storage
Storage: 2 x USB Type A socket (front and rear – 1.6A charge)
Audio Inputs
Streaming: Chromecast built-in, Apple AirPlay, TIDAL, Spotify® Connect, Bluetooth (AptX HD), Internet Radio, UPnP™ (hi-res streaming), Roon Ready
USB: 2 x USB Type A socket (front and rear – 1.6A charge)
Digital (S/PDIF)
2 x Optical TOSLink (up to 24bit/96kHz)
1 x coaxial RCA (up to 24bit/192kHz, DoP 64Fs)
1 x coaxial BNC (up to 24bit 192kHz, DoP 64Fs)
Physical
Dimensions: 87mm x 432mm x 314mm (H x W x D)
Finishes: Brushed and anodised aluminium
Weight: 10kg
Formats
Multiroom: Party Mode Streaming: Sync up to six Naim products and control via the Naim app
Internet Radio Formats: Windows Media-formatted content, MP3, ACC, OGG Vorbis streams and MMS
Internet Radio Provider: vTuner premium 5*
Audio Formats
WAV – up to 32bits/384kHz
FLAC and AIFF – up to 24bit/384Hz
ALAC (Apple Lossless) – up to 24bit/384Hz
MP3 – up to 48kHz, 320kbit (16 bit)
AAC – up to 48kHz, 320kbit (16 bit)
OGG and WMA – up to 48kHz (16 bit)
DSD – 64 and 128Fs
M4A – up to 48kHz, 320kbit (16 bit)
Note: Gapless playback supported on all formats.
Connectivity
Updates: Update your system wirelessly via the Naim app
Network
Ethernet (10/100Mbps), WiFi (802.11 b/g/n/ac with external antennae)

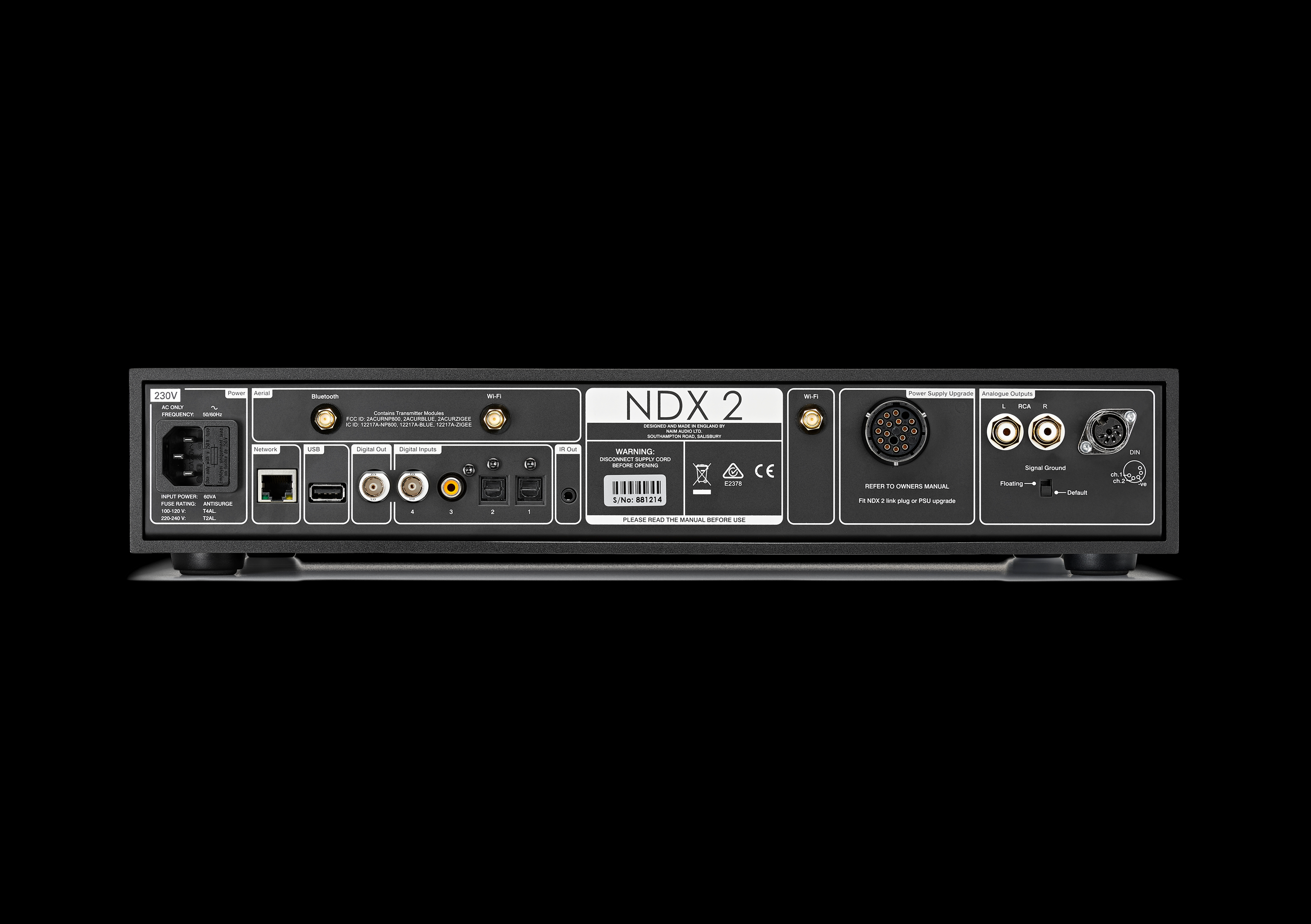

Audio Outputs
Analogue: 1 x RCA pair / 1 x 5-pin DIN
Supplied with
Supplied with: Zigbee® remote (inc. batteries), Power-Line Lite cable (UK denominations only), Burndy link plug, 5-pin DIN interconnect cable, BNC to RCA adaptor, Wi-Fi (x2) and Bluetooth antennae, cleaning cloth, quick start guide
Tehoa
Power Consumption
Typical use: 19W
Network standby mode: <2W
Deep sleep: <0.5W
