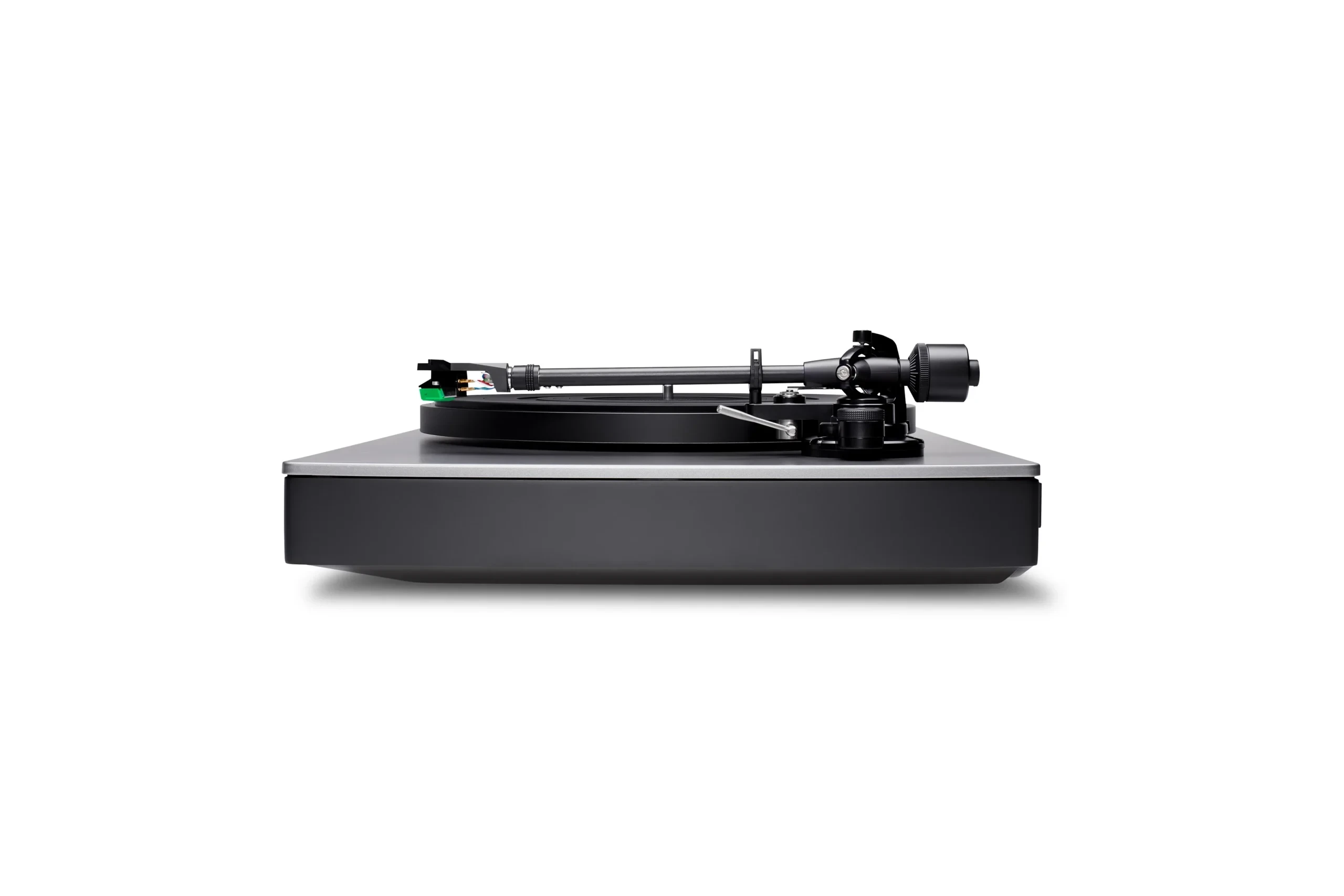

Cambridge Audio ALVA ST

Kirjeldus

Omadused
TYPE: Belt Drive
TURNTABLE SPEEDS: 33.3, 45rpm
WOW & FLUTTER: <0.12%
TURNTABLE PLATTER: Die Cast Aluminium
PLATTER DIAMETER: 305mm
PLATTER WEIGHT: 645.3g (930.5g inc. rubber mat)
AUDIO OUT: RCA Phono/Line Level (Switchable)
BLUETOOTH: SBC/aptX/aptX HD
PHONO STAGE GAIN @1KHZ: 42dB
PHONO STAGE NOMINAL OUTPUT: 250Vrms
PHONO STAGE INPUT NOISE (A-WEIGHTED): 0.1u Vrms
PHONO STAGE RIAA CURVE ACCURACY: *+/- 0.3dB 30Hz-20kHz
PHONO STAGE SIGNAL/NOISE RATIO: >90dB
PHONO STAGE THD+N 1KHZ: 0.0025%
PHONO STAGE INPUT IMPEDANCE: 47Ω
PHONO STAGE INPUT CAPACITANCE: 100pF
TONEARM TYPE: Static Balanced Tonearm w/ detachable Headshell
TONEARM EFFECTIVE LENGTH: 221.5mm
TONEARM OVERHANG: 19mm
TONEARM EFFECTIVE MASS: 19.6g
TONEARM COMPATIBLE CARTRIDGE WEIGHTS: 4.5-12g
CARTRIDGE: Moving Magnet
CARTRIDGE FREQUENCY RESPONSE: +/- 0.5dB 30Hz-20kHz
CARTRIDGE STYLUS: Elliptical
CARTRIDGE CANTILEVER: Alloy Tube
CARTRIDGE OUTPUT LEVEL: 1.8~3.6mV @1kHz
CARTRIDGE TRACKING FORCE: 2g
CARTRIDGE RECOMMENDED LOAD: 47Ω
POWER SUPPLY: AC 100-240V, 60/50Hz
POWER CONSUMPTION: 6W
MAX POWER CONSUMPTION: 20W
STANDBY POWER CONSUMPTION:<0.3W
DIMENSIONS (W X H X D): 435 x 139 x 366.7mm
WEIGHT: 9kg
